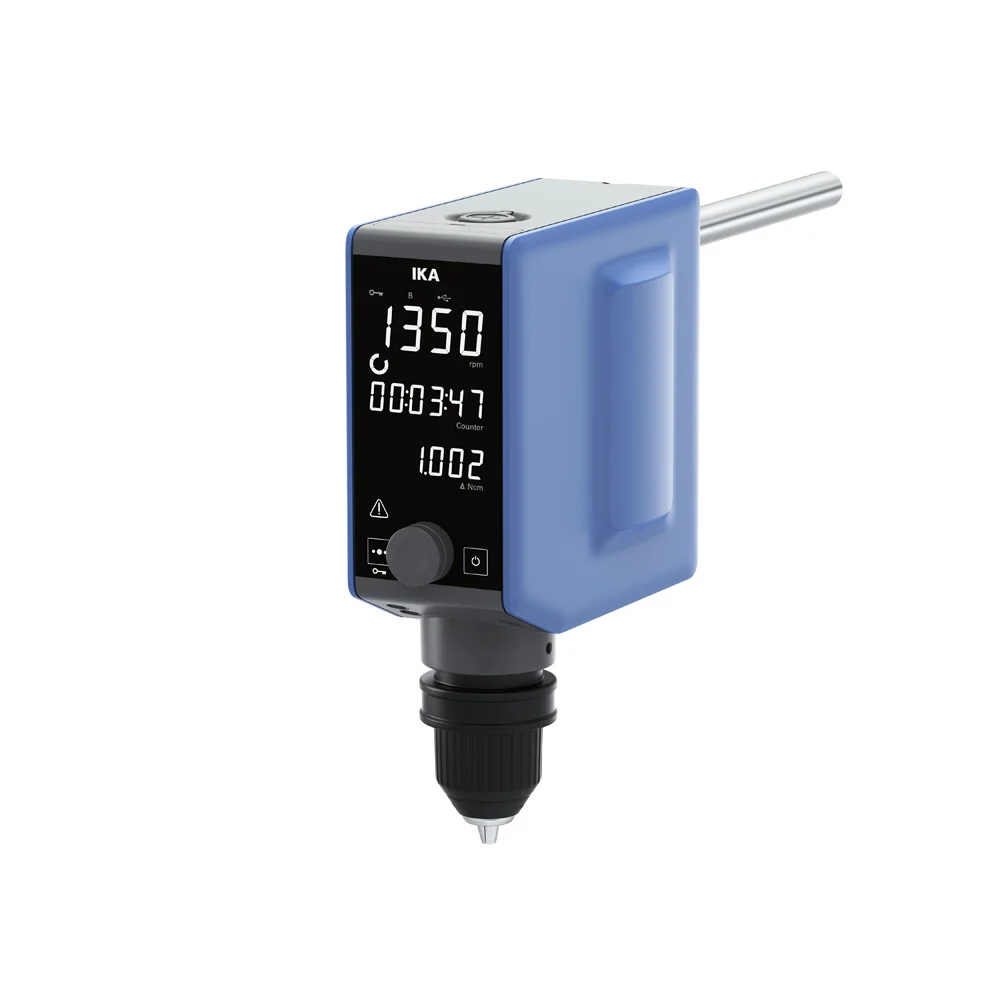

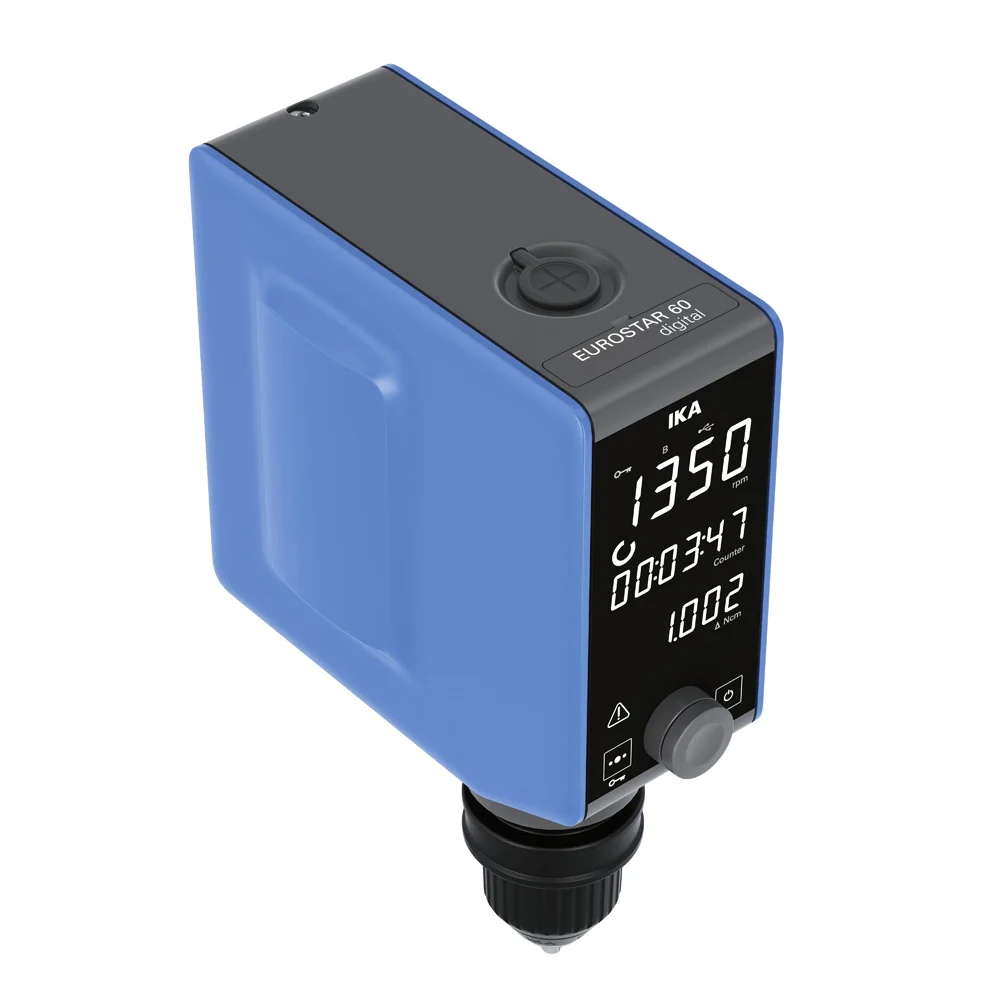

EUROSTAR 60 digital Overhead Stirrer
EUROSTAR 60 digital Overhead Stirrer
The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance. With up to 23% less space required compared to the previous models they fit perfectly into any laboratory.
EUROSTAR 60 digital is the right solution for simple mixing tasks up to 60 liters (H2O) and viscosities up to 50 000 mPas. Its maximum torque of 100 Ncm and linear adjustment to 60 Ncm at maximum speed guarantee reliable and powerful performance.
The innovative torque trend measurement shows the viscosity trend of the sample (+/- 6 Ncm accuracy). The torque trend is shown directly on the display and provides important feedback on the mixing process. The desired stirring speed 30-2000rpm is always guaranteed even with changes to the torque demand or viscosity of the material.
ISO Class 7/8 Cleanroom Compliance allows for use in cleanroom environments in pharmaceutical, biotech, medical device, electronics, and aerospace labs, industries where particle control is critical.
Maximum safety and reliability

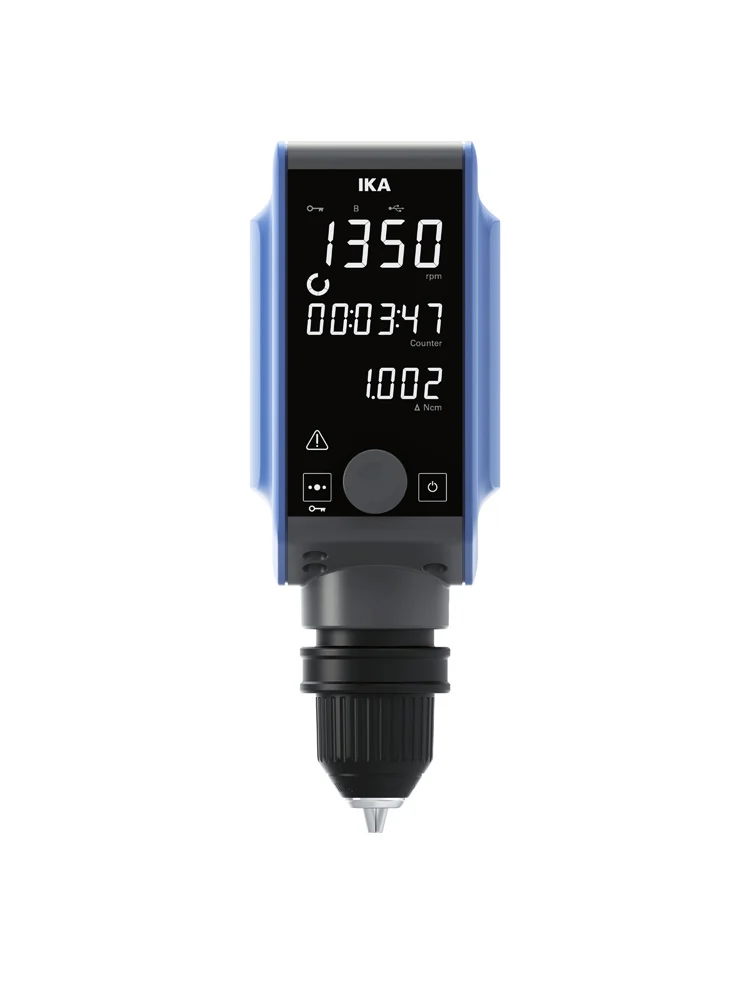

• User-friendly: Large LCD display shows all parameters at a glance

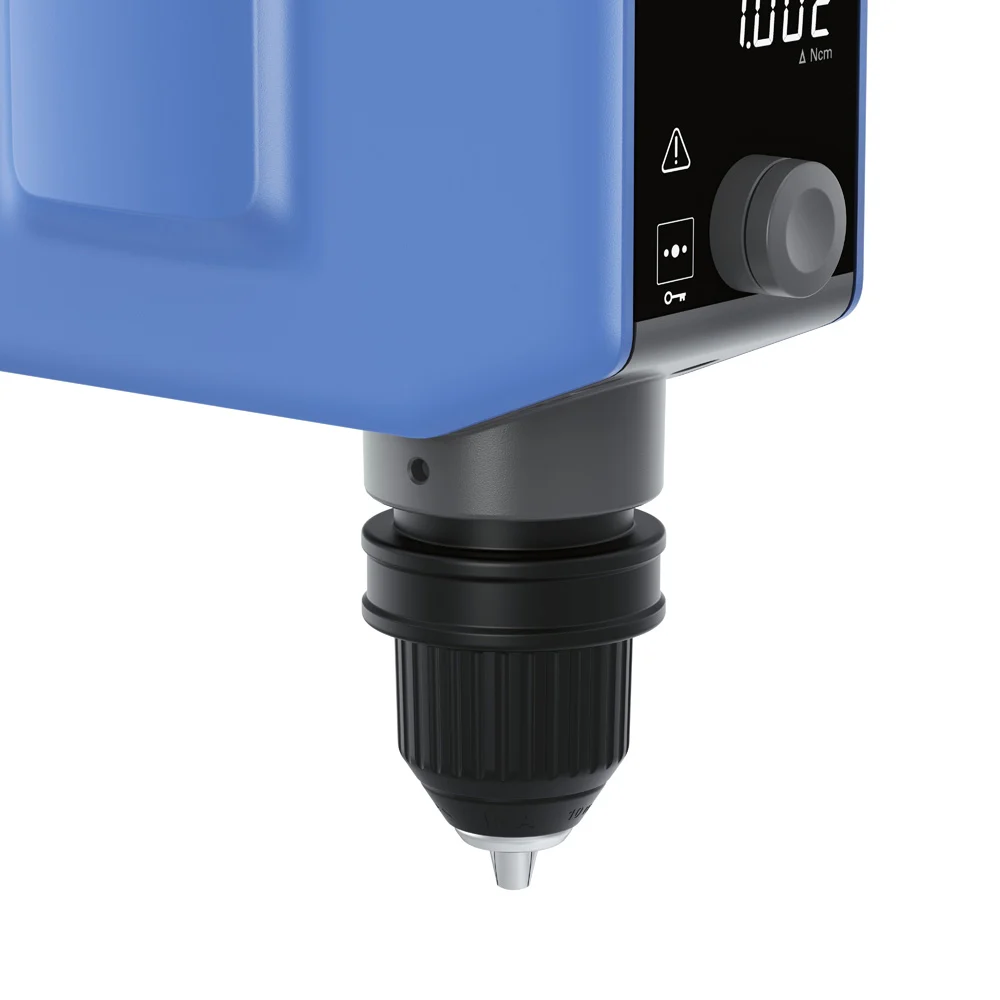

• Quick Sense Keyless Chuck: allows the mixing tools to be changed with one hand, without additional tools
• Lock key: Prevents accidental changes to settings
• Safety Circuits: automatic safety shutoff from stirring impeller blockage or user specified torque limit
• Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments
• Brushless motor: Durable, clean and quiet in operation
Connectivity and documentation
• USB and RS232 interfaces
• Compatible with labworldsoft® laboratory software for integration into digital workflows and documentation of processes
Features
• 23% smaller size than previous models
• Torque Trend Measurement
• Quick Sense Keyless Chuck
• Cleanroom ISO 7/8 Classification
• IP 54
• Timer/Counter function
• Lock Key
• LCD Display
• USB Interface
• RS 232
| Stirring quantity max. per stirring position (H2O) | 60 l |
| Motor rating input | 168 W |
| Motor rating output | 131 W |
| Motor principle | Brushless DC |
| Speed display | LCD |
| Speed range | 0/30 – 2000 rpm |
| Viscosity max. | 50000 mPas |
| Output max. at stirring shaft | 126 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 100 Ncm |
| Torque max. at stirring shaft at 30-400 rpm | 100 Ncm |
| Torque max. at stirring shaft at 400-2000 rpm | 100-60 Ncm |
| Speed adjustment | stepless |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | chuck |
| Chuck range diameter | 0.5 – 10 mm |
| Hollow shaft, inner diameter | 11 mm |
| Hollow shaft (push-through – when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Torque display | yes |
| Speed control | electronic |
| Nominal torque | 0.6 Nm |
| Torque measurement | trend |
| Deviation of torque measurement I | ±6 Ncm |
| Timer | yes |
| Timer display | LCD |
| Time setting range | 1 – 6000 min |
| Housing material | alu-cast coating / thermoplastic polymer |
| Clean room qualified | yes |
| Noise without element | 52 dB(A) |
| ISO Cleanroom Class (900rpm) | Class 7 |
| ISO Cleanroom Class (1800rpm) | Class 8 |
| Dimensions (W x H x D) | 89 x 237 x 191 mm |
| Weight | 3.8 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 54 |
| RS 232 interface | yes |
| USB interface | USB-C |
| Voltage | 100 – 240 V |
| Frequency | 50/60 Hz |
| Power input | 186 W |
