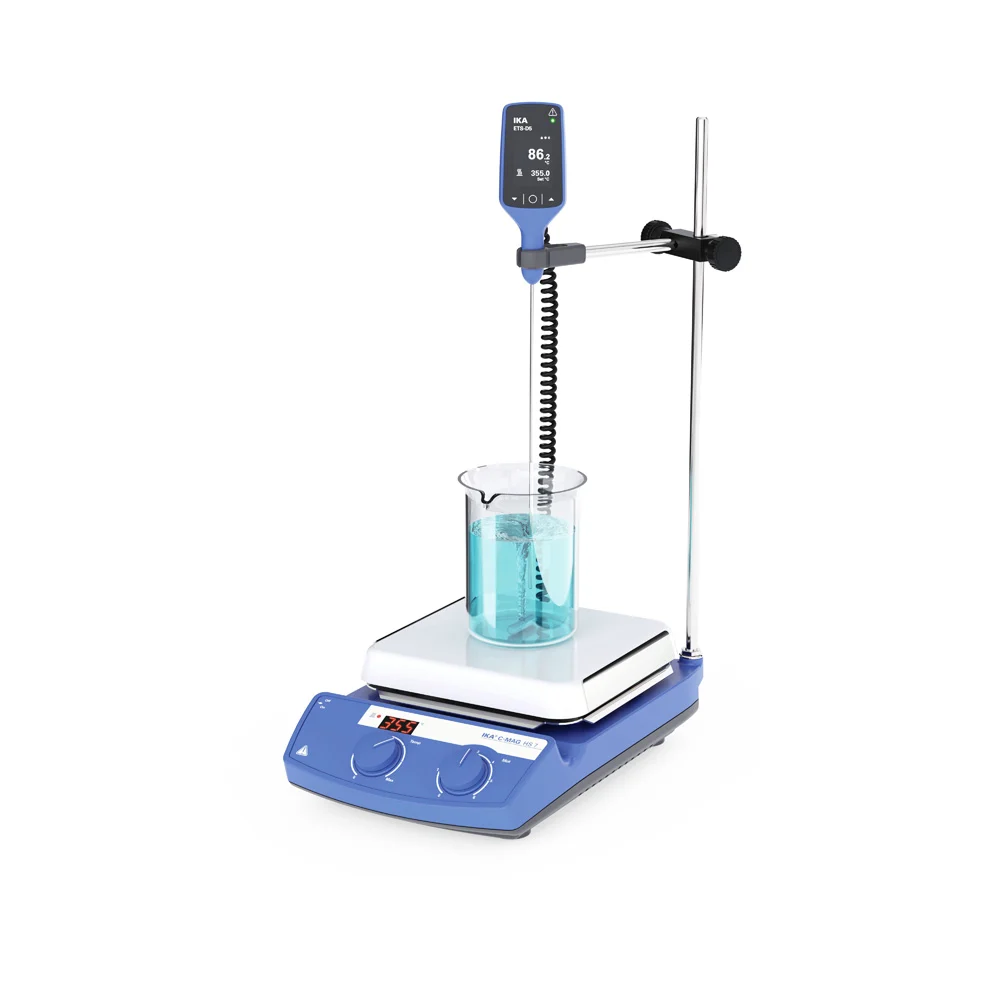

C-MAG HS 7 Package
C-MAG HS 7 Package
C-MAG HS 7 Package
Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
Powerful motor for stirring quantities of up to 10 l (H2O)
Fixed safety circuit of 550 °C
Hot Top indicator >> hot surface warning to prevent burns!
Exact temperature setting via digital display (LED)
With a contact thermometer, ETS-D5, enables precise temperature control, ±0.5°C(DIN 12878)
Digital error code display
Elevated control panel for protection against leaking liquids
Scope of delivery
• C-MAG HS 7
• ETS-D5 Electronic contact thermometer
• H 16 V Support rod
• H 38 Holding rod
• H 44 Boss head clamp
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 10 l |
| Maximum load | 15 kg |
| Motor rating output | 1.5 W |
| Direction of rotation | left |
| Speed adjustment | scale 0 – 6 |
| Speed range | 100 – 1500 rpm |
| Stirring bar length max. | 80 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +2 K |
| Heat output | 1000 W |
| Temperature display set-value | LED |
| Heating temperature range | 50 – 500 °C |
| Heat control | Turning knob |
| Temperature setting resolution of heating plate | 5 K |
| Connection for ext. temperature sensor | ETS-D5 |
| Fixed safety circuit | 550 °C |
| Set-up plate material | ceramic |
| Set-up plate dimensions | 180 x 180 mm |
| Heating rate (1l H2O in H1500) | 5 K/min |
| Dimensions (W x H x D) | 220 x 105 x 335 mm |
| Weight | 5 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 1020 W |
